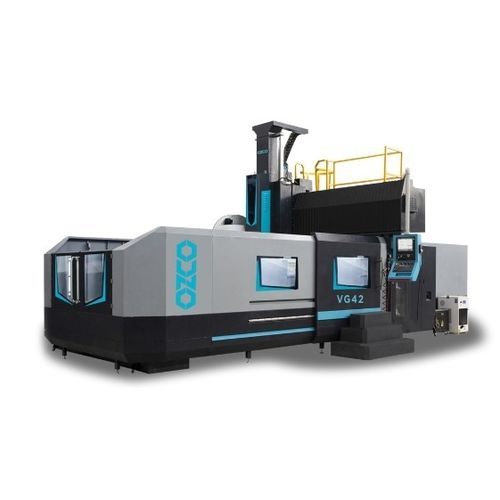

Double-column CNC machining center VG42

3-axisverticalrotating table

• Ball screws (HIWIN, Taiwan) • Bearings (NSK, Japan) • Spindle (ROYAL, Taiwan) • Central lubrication unit (HERG, Japan) • Pneumatic unit (AIRTAC, Taiwan) • Electrical system (SCHNEIDER, France) • Tool magazine ARM type (POJU, Taiwan) • Mitsubishi M80A controller with • 15" LCD screen control panel for all models • 20 bar CTS (Coolant Through Spindle) • Air gun and coolant gun • Rigid tapping • M30 automatic power off • Full moulding package in controller • Heat exchanger on electrical cabinet • Leveling screws and pads • Worklight • Alarm light 3-colored • Central lubrication unit • Spindle head coolant system • Air through spindle • RS232 interface • P05 10.000 soft corners function in controller • MPG Handwheel • Fully enclosed cabin • 2 spiral type + 1 chain type conveyor • Oil skimmer to separate guideway oil and coolant • Heidenhain linear scales • Fagor linear scales • Automatic rectangular milling head • 90° milling head • Tool automatic setting • Vertical/Horizontal tool magazine • CNC rotary table • ZF gear box • 50 bar CTS (Coolant Through Spindle) Table Size - 4000x1800 mm T-slot Size - 28/9/180 mm Distance Between Two Gantry Columns - 2200 mm Spindle-Table Distance - 200-1200 mm Spindle Diameter - 190 mm Cutting Feet Speed - 1-8000 mm/min Control Unit - 110/350mm Driver and Encoder - Mitsubishi Main Motor Torque Power - 140/223 Nm X axis Linear Roller Guideway Size - RGW55CC6R*2 Y axis Linear Roller Guideway Size - RGH55CA3R/ RGW55CC2R Leadscrew Diameter X - GQ80x20 Leadscrew Diameter Y - GQ63x12 Leadscrew Diameter Z - GQ50x10
