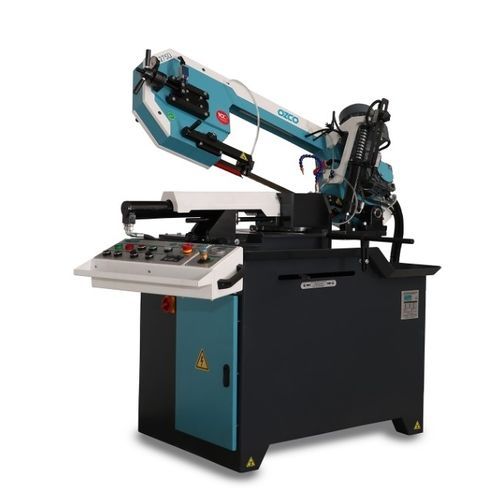

Band sawing machine TS275D

miterfor metalsCE

• Unlimited step between 20-80 min with inverter speed regulation/Vario system • Digital speed display • Single cutting line in the vise • LED-Light illuminating the cutting area • Hydro-mechanical strip tensioning and saw pressure gauge • Ergonomic control panel providing ease of use • Special design cast pulleys • High quality hydraulic system adjusting the feeding speed • Domestic main motor, powerful reducer • High quality electric system • High quality electric system • Chip Brush • Adjustable support arm • Bi-metal saw blade mounted • 3 Roll 1mm material stand Replacement saw band: 36103/4 : 27x0,9x3160mm- 3/4 tpi 31604/6 : 27x0,9x3160mm- 4/6 tpi 31605/8 : 27x0,9x3160mm- 5/8 tpi Main Motor Power - 1,5 kW, 380 V Cutting Angle - -45° / +60° Cutting Angle Adjustment - Miter Cutting Lifting the Saw Head / Feed - Hydraulic Saw Blade Dimensions - 27x0,9x3160 mm Speed Range - 20-80 rpm Number of Steps - Inverter / Variable Material feeding height - 960 mm Clamp Opening Range - 350 mm Clamp Height - 145 mm Hydraulic Motor Power - 0,18 Kw Cooling Engine Power - 0,12 W Machine Dimensions - 1500x1750x1050 Weight - 460 Kg
