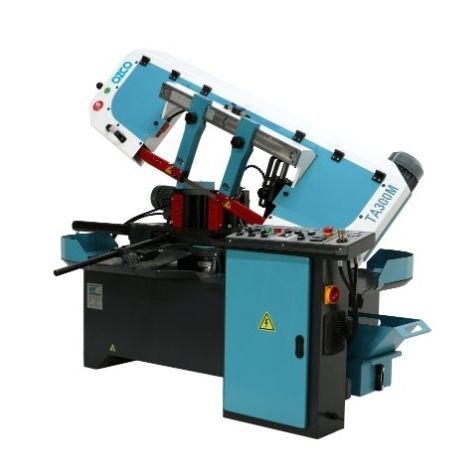

Band sawing machine TA300M

for metalsCEfully-automatic

• Unlimited step between 20-100 min with inverter speed regulation/Vario system • Digital speed display • Ergonomic control panel that providing ease of use • Special design cast pulleys • Hydro-mechanical band tensioning • Domestic production powerful engine • Domestic production special design reducer • Specially designed double bearing system, reinforced material sliding system and long-lasting roller balls • Clamping pressure setting suitable for material type with adjustable clamp pressure system • Band saw system with double bearing pressure increasing cutting precision • High quality cooling engine from Italy • Chip Brush • Schneider Electrical System • Hydraulic/Automatic material clamping • Hydraulic/Automatic head travel • Automatic material feeding • 5 Roll material stand • 2 Roll material stand • Bi-metal saw blade mounted on the machine Replacement saw band: 36603/4 27x0,9x3660mm- 3/4 tpi 36604/6 27x0,9x3660mm- 4/6 tpi 36605/8 27x0,9x3660mm- 5/8 tpi Main Motor Power - 1,5 kW, 380 V Cutting Angle - 0°-45° Speed Range - 20-100 rpm Number of Steps - İnvertörlü / Sınırsız Material feeding height - 760 mm Clamp Opening Range - 0-335 mm Clamp Height - 190 mm Driving Motor Power - 0.37 Hydraulic Motor Power - 0.18 Kw Cooling Engine Power - 0.12 W Machine Size - 2260x1260x1430 mm mm Weight - 800 Kg
