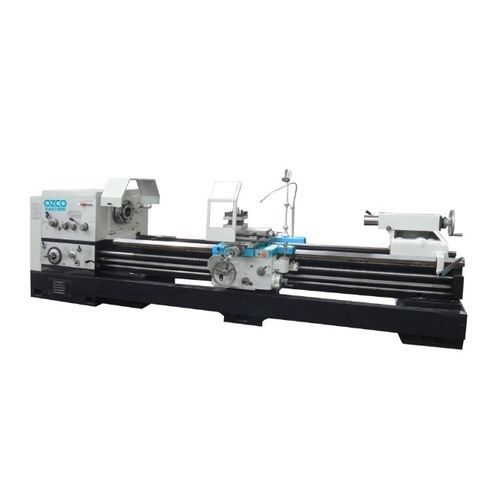

Conventional lathe CA8060M

horizontalrigidheavy-duty

• Mechanical clutch system • Chuck and Tool holder safety shields • Equipped with joystick featuring practical easy use • Machine lamp • Lathe Foot Brake • Coolant System • CE Standard • 3 jaw lathe chuck Ø400 mm • 4 jaw lathe chuck Ø630 mm • Face plate Ø800 mm • Steady Rest 160-350 mm • Follow Rest • MT6 Live center • MT6 Dead center • Thread Gauge • Quadruple tool holder • Machine lamp • Protective Chuck and Tool Holder Shields • Coolant System • Anti-vibration pad • Operating Tools Bed Width - 600 mm Center Width - 6000 mm Maximum Load Capacity - 2000 Kg Number of Steps - 18 (ileri) / 6 (geri) Spindle Taper - MK6 Spindle Holder - C11 Spindle Bore - 100 / L modellerinde 140 mm Compound Rest Travel - 500 mm Cross Slide Travel - 200 mm Tailstock Spindle (Taper) - MK6 Tailstock Spindle Diameter - 100 mm Tailstock Sleeve Stroke - 250 mm Longitudinal Feed - 0.1-24.32 ; 64 mm/rev Cross Feed - 0.024-12.15 mm/rev Pitch–Metric - 1-240 mm Pitch–Inches - 1-14 Modular Thread Range - 0,5-120 Diametral Pitch Range - 1-28 Tool Holder - 32x32 mm
