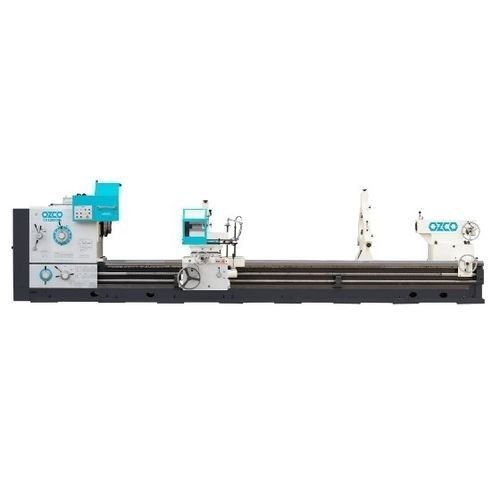

Conventional lathe CA20060DL

horizontalrigidheavy-duty

• Turcite-B coated Slideways • Hardened and grinded slideway • Slideways Hardness – HRC48 • Hydraulic clutch system • Chuck and Tool holder safety shields • Heavy-duty rigid cast iron machine bed • Equipped with joystick featuring practical easy use • Machine lamp • Coolant System • CE Standard • 4 jaw lathe chuck Ø1250 mm • Steady Rest 50-425 mm • Steady Rest 285-635 mm • Follow Rest 50-220 mm • Live center • Dead center • Quadruple tool holder • Machine lamp • Protective Chuck and Tool Holder Shields • Coolant System • Operating Tools Bed Width - 1100 mm Center Width - 6000 mm Maximum Load Capacity - 16000 Kg Number of Steps - 21 (ileri) / 12 (geri) Spindle Holder - A2-15 Spindle Bore - 130 mm Compound Rest Travel - 900 mm Cross Slide Travel - 360 mm Tailstock Spindle (Taper) - M80 Tailstock Spindle Diameter - 260 mm Tailstock Sleeve Stroke - 300 mm Longitudinal Feed - 0,1-12 (56 adet) mm/rev Cross Feed - 0,05-6 (56 adet) mm/rev Pitch–Metric - 1-120 (44 adet) mm Pitch–Inches - 0,25-28 (31 adet) Modular Thread Range - 0,5-60 (45 adet) Diametral Pitch Range - 0,5-56 (38 adet) Tool Holder - 50x50 mm
