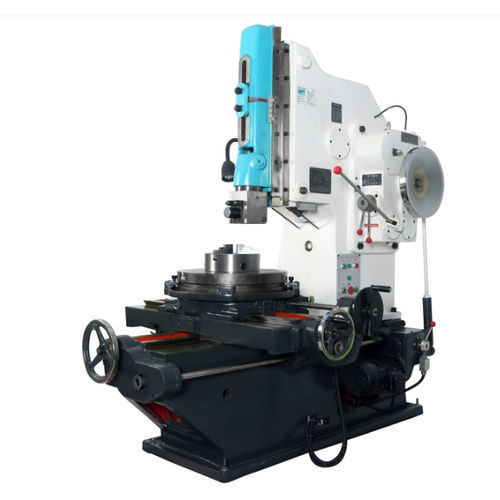

Automatic slotting machine PV5040E 2-axis
Add to favorites
Compare this product
Characteristics
- Control type
- automatic
- Number of axes
- 2-axis
Description
• High quality casting
• Strong body, rigid structure
• Automatic motorized X/Y axis travel
• Lighting system
• SchneiderElectrical System
• Emergency Stop Button
• 3-jaw chuck 315mm
• Operating tools
Main Motor Power - 4.0 kW, 400 V
Stroke Length(Max.) - 400 mm
Spindle Speed - 20, 32, 50, 80 rpm
Tilt Angle - 0°-8°
Distance Between Table and Spindle (Max.) - 315 mm
Table Diameter - 630 mm
X Axis Travel - 620 mm
Y Axis Travel - 560 mm
Table Rotation Angle - 360°
Forward-Backward, Right-Left Automatic Feeding - 0.08-1.21 mm
Table Feed - 0.052-0.783 mm/min
Maximum Load Capacity - 500 Kg
Speed Range - 960 rpm
Tool Holder Rotation Angle - 360°
Machine Size - 2290x1525x2485 mm
Net Weight - 3700 Kg
