3-axis CNC machining center VM7
verticalwith rotary tableBT 40

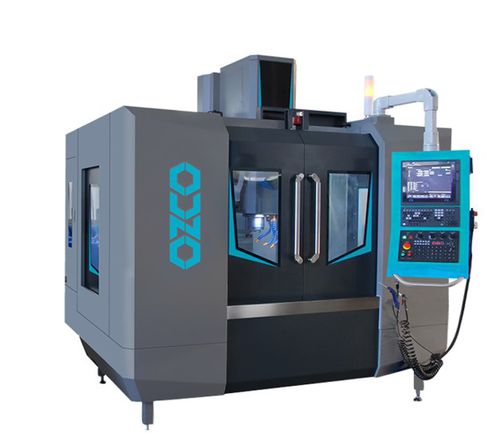

3-axis CNC machining center - VM7  - Ozco Metalworking Machines - vertical / with rotary table / BT 40
3-axis CNC machining center - VM7  - Ozco Metalworking Machines - vertical / with rotary table / BT 40
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
with rotary table
Spindle mount
BT 40
Number of tool stations
24 tools
Other characteristics
CE
X travel

700 mm
(27.56 in)

Y travel

500 mm
(19.69 in)

Z travel

500 mm
(19.69 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

7.5 kW, 11 kW
(10.2 hp, 14.96 hp)

Work feed X-axis

48 m/min

Work feed Y-axis

48 m/min

Work feed Z-axis

42 m/min

Table load capacity

500 kg
(1,102 lb)

Positioning accuracy

0.005 mm
(0.0002 in)

Repeatability

0.003 mm
(0.00012 in)

Weight

4,200 kg
(9,259.42 lb)

Description

• Ball screws (HIWIN, Taiwan) • Bearings (NSK, Japan) • Spindle (ROYAL, Taiwan) • Electric system (SCHNEIDER, France) • Central lubrication unit (HERG, Japan) • Tool magazine (OKADA / POJU, Taiwan) • Mitsubishi M80A controller • 15" LCD screen control panel • 20 bar CTS (Coolant Through Spindle) • Air gun and coolant gun • Rigid tapping • M30 automatic power off • Full moulding package in controller • Heat exchanger on electrical cabinet • Leveling screws and pads • Worklight • Alarm light • Central lubrication unit • Telescope cover for guideway • Spindle head coolant system • Air through spindle • R232 Interface • P05 10.000 soft corners function in controller • 4 bar pump with cabin wash device • MPG handwheel • Fully enclosed cabin • Chain type chip conveyor • Mitsubishi M80A controller • 15" LCD screen control panel • 20 bar CTS (Coolant Through Spindle) • Air gun and coolant gun • Rigid tapping • M30 automatic power off • Full moulding package in controller • Heat exchanger on electrical cabinet • Leveling screws and pads • Worklight • Alarm light • Central lubrication unit • Telescope cover for guideway • Spindle head coolant system • Air through spindle • R232 Interface • P05 10.000 soft corners function in controller • 4 bar pump with cabin wash device • MPG handwheel • Fully enclosed cabin • Chain type chip conveyor Table Size - 900x500 mm T-slot Size - 3/18/125 mm mm Spindle-Table Distance - 120-620 mm mm Spindle-Column Distance - 560 mm mm Spindle Speed - 10.000 rpm/min, Belt Type Spindle Diameter - 120 mm X,Y,Z Motor Power - 2/2/3 kW Cutting Feet Speed - 12.000 mm/dak Max Tool Diameter - 80/130 mm Control Unit - Mitsubishi M80A
