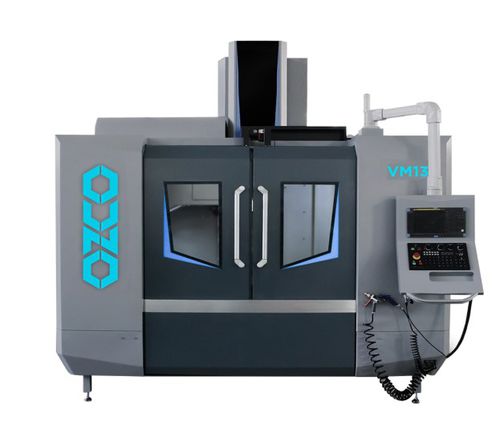

3-axis CNC machining center VM13

verticalrotating tableBT 50

• Ball screws (HIWIN, Taiwan) • Bearings (NSK, Japan) • Spindle (ROYAL, Taiwan) • Electric system (SCHNEIDER, France) • Central lubrication unit (HERG, Japan) • Tool magazine (OKADA / POJU, Taiwan) • Mitsubishi M80A controller • 15" LCD screen control panel • 20 bar CTS (Coolant Through Spindle) • Air gun and coolant gun • Rigid tapping • M30 automatic power off • Full moulding package in controller • Heat exchanger on electrical cabinet • Leveling screws and pads • Worklight • Alarm light • Central lubrication unit • Telescope cover for guideway • Spindle head coolant system • Air through spindle • R232 Interface • P05 10.000 soft corners function in controller • 4 bar pump with cabin wash device • MPG handwheel • Fully enclosed cabin • Chain type chip conveyor • Fanuc 0i-MF plus control unit Table Size - 1500x700 mm T-slot Size - 5/18/140 mm Spindle-Table Distance - 160-860 mm Spindle-Column Distance - 740 mm Spindle Diameter - 155 mm X,Y,Z Motor Power - 3/3/3 kW Cutting Feet Speed - 10.000 mm/dak Max Tool Diameter - 105/200 mm Control Unit - Mitsubishi M80A Driver and Encoder - Mitsubishi Main Motor Torque Power - 70-118 Nm X,Y,Z Guideway - 45/45/55 mm X,Y,Z Leadscrew Diameter - 50/50/50 mm
