3-axis CNC machining center VM18
verticalrotating tableBT 50

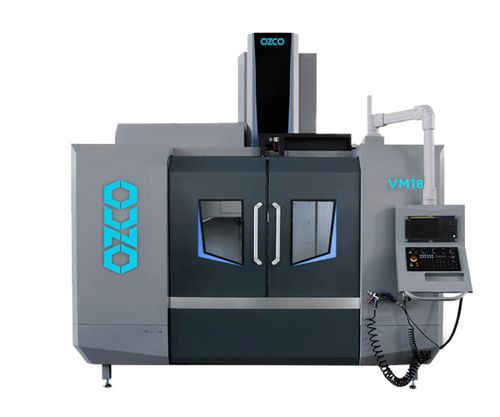

3-axis CNC machining center - VM18 - Ozco Metalworking Machines - vertical / rotating table / BT 50
3-axis CNC machining center - VM18 - Ozco Metalworking Machines - vertical / rotating table / BT 50
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
rotating table
Spindle mount
BT 50
Number of tool stations
24 tools
Other characteristics
CE
Rotational speed

8,000 rpm
(50,265 rad.min-1)

Power

15 kW, 18.5 kW
(20.39 hp, 25.15 hp)

Work feed X-axis

12 m/min

Work feed Y-axis

12 m/min

Work feed Z-axis

12 m/min

Table load capacity

1,600 kg
(3,527 lb)

Positioning accuracy

0.008 mm
(0.00031 in)

Repeatability

0.005 mm
(0.0002 in)

Weight

13,000 kg
(28,660.09 lb)

Description

• Ball screws (HIWIN, Taiwan) • Bearings (NSK, Japan) • Spindle (ROYAL, Taiwan) • Electric system (SCHNEIDER, France) • Central lubrication unit (HERG, Japan) • Tool magazine (OKADA / POJU, Taiwan) • Mitsubishi M80A controller • 15" LCD screen control panel • 20 bar CTS (Coolant Through Spindle) • Air gun and coolant gun • Rigid tapping • M30 automatic power off • Full moulding package in controller • Heat exchanger on electrical cabinet • Leveling screws and pads • Worklight • Alarm light • Central lubrication unit • Telescope cover for guideway • Spindle head coolant system • Air through spindle • R232 Interface • P05 10.000 soft corners function in controller • 4 bar pump with cabin wash device • MPG handwheel • Fully enclosed cabin • Chain type chip conveyor • Fanuc 0i-MF plus control unit Table Size - 2000x900 mm T-slot Size - 5/22/165 mm Spindle-Table Distance - 160-960 mm Spindle-Column Distance - 960 mm Spindle Diameter - 190 mm X,Y,Z Motor Power - 7/4,5/4.5 kW Cutting Feet Speed - 8.0000 dev/dak Max Tool Diameter - 105/200 mm Control Unit - Mitsubishi M80A Driver and Encoder - Mitsubishi Main Motor Torque Power - 143/236 Nm X,Y,Z Guideway - 55/45/55 mm X,Y,Z Leadscrew Diameter - 50/50/50 mm
