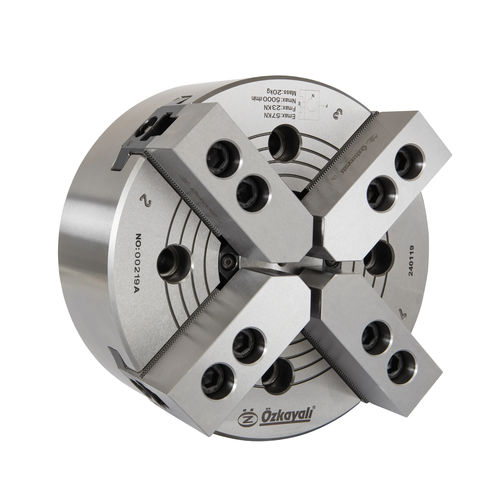

Power chuck CHS Series 4-jawopen-centersteel alloy
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Number of jaws
- 4-jaw
- Other characteristics
- open-center, steel alloy
- Rotational speed
2,500 rpm, 3,300 rpm, 4,200 rpm, 5,000 rpm, 6,000 rpm
(15,707.96 rad.min-1, 20,734.51 rad.min-1, 26,389.38 rad.min-1, 31,415.93 rad.min-1, 37,699.11 rad.min-1)- Gripping force
38 kN, 57 kN, 74 kN, 96 kN, 120 kN
Min.: 0.04 kN
Max.: 0.12 kN
- Outer diameter
169 mm, 210 mm, 254 mm, 305 mm, 381 mm
(7 in, 8 in, 10 in, 12 in, 15 in)
Description
* The entire body of the power chuck is made of special alloy steel.The all body is made resistant to friction.
*Lubrication ducts are specially designed.In this way, the oil is distributed equally to all surfaces.and the abrasion on the surfaces is reduced to a minimum.
*Hardened and grinded surfaces provide longer life while maintaining accuracy and repeatability
PACKAGE INCLUDED
- Chuck and Mounting Bolts
- Soft Jaws (1 Set)
- Hard Jaws (1 Set)
- T-Nuts (1 Set
- T-Nuts Bolts
- Key for Chuck İnstallations
- Unhandled Lantern spindle nut
