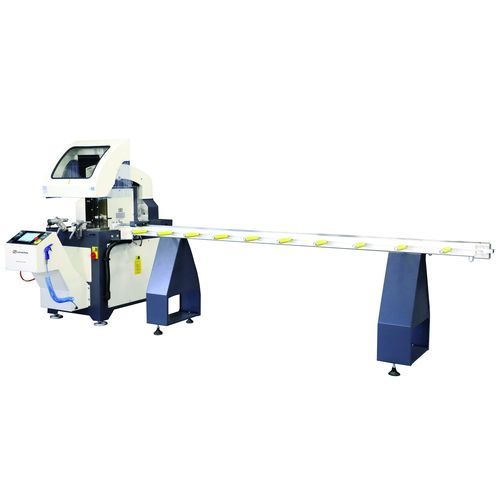

Blade cutting machine LEO - Rfor PVCfor aluminumfor wood
Add to favorites
Compare this product
Characteristics
- Technology
- blade
- Material
- for aluminum, for PVC, for wood
- Product handled
- profile
- Control type
- servo-driven
- Applications
- for industrial applications
- Configuration
- 2-axis
- Other characteristics
- automatic, pneumatic, 45°
- Operating pressure
Max.: 8 bar
(116.03 psi)Min.: 6 bar
(87.02 psi)- Overall length
7,310 mm
(288 in)- Overall width
1,985 mm
(78 in)- Height
1,580 mm
(62 in)- Weight
780 kg
(1,719.61 lb)
Description
LEO-R, automatic front blade saw with 2 axis servo controlled and 550 mm saw is ideal for cutting aluminum and PVC profiles with different angles and thickness, LEO-R comes with complimentary digital stop that can be controlled from the same screen with the saw.
LEO-R designed for cutting wider profiles with the servo motion system, automatic positioning at all degrees between -22,5° and 45° allows for perfect cutting operation.
Safety is a topmost priority for LEO-R together with the horizontal clamps and the vertical clamp along with profile protective shield which improve the cutting quality.
