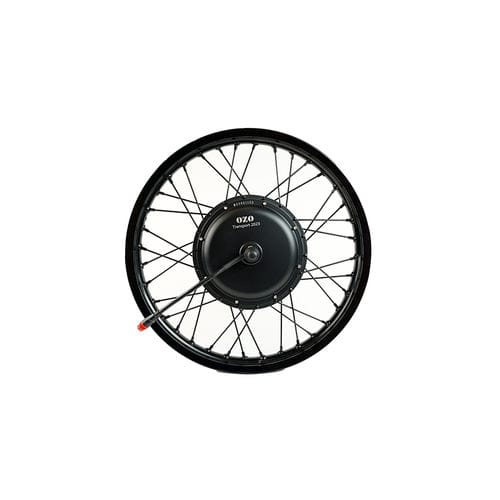

DC wheel motor 009084brushlesscentralagricultural
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Configuration
- central
- Applications
- agricultural, industrial, propulsion, for drive systems
- Other characteristics
- high-performance
- Power
4,000 W, 5,000 W
(5.438 hp, 6.798 hp)- Intensity
90 A
- Torque
170 Nm
(125.3856 ft.lb)
Description
This 5000W motor gets 55mmm magnets and can accepts up to 5000W power.
Weight : 9,8 kg | dropout : 150mm
Delivered with a 200mm cable length
The DD55 engine is the most powerful in the range. It is intended for industrial or agricultural use
It is a BLDC Brushless motor that can be powered from 24V to 96V and accepts a max current of 90A and 60A continuously.
Its stator has a lamination in 0.35mm which gives it a yield of 91%.
Center distance: 150mm
Length of axis = 229,5mm
36V or 48V, 25A, 35A or 40A power supply
