Self-adhesive label printer-applicator Pk-P&A 4

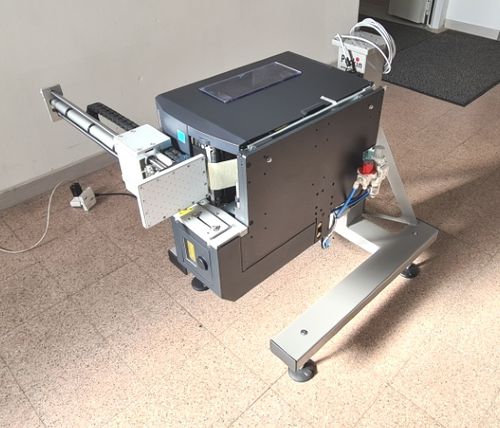

horizontal operationvertical operation

Print&Apply labelling machine. Pk-P&A 4″ Based on thermal printer from Toshiba Tec the print and applyer Pk-P&A 4″ is installed on STAND-X frame to easily adjust the labelling position. It is possible to install the machine for vertical or horizontal applications. Print and apply self-adhesive labels using an application cylinder with vacuum on top, it possible to apply labels directly in contact with the product or detecting the product with sensor so the machine can work with stopped product or products in movement.  Available a range of thermal printer (TEC) model T1 near edge types with save ribbon option available. Or thermal printer version T2 with standard flat head printing head. Labels up to 100x150mm.  Label width: from 55 to 116mm Label length: from 25 to 200mm Label application: contact, blowing air Cilynder range: 400mm. useful 250mm. Hand protection: yes, optional Frequency application: up to 30 pc/min. Label roll diameter: up to 250 mm Label roll core: 76 mm Label rewinder diameter: fino a 140mm Alarm: end of roll, paper break, external machinery command Products transparent photocell: yes, optional Transparent labels: no Connections: USB, Ethernet, Wifi optional Usable printers: B-EX4T1-B-EX4T2 Foil length: up to 600mt (800 mt for mod B-EX4T1 Printing definition: 200, 300, 600 dpi Save Ribbon: yes, only for model B-EX4T1 Ribbon ink: IN/OUT Positioner with knob (vertical): yes STAND-X base support: yes Electric power: 220Vac 50/60 Hz Compressed air: 4/6 Bar Dimensions: 50x70x100 H. cm Weight: 60 Kg
