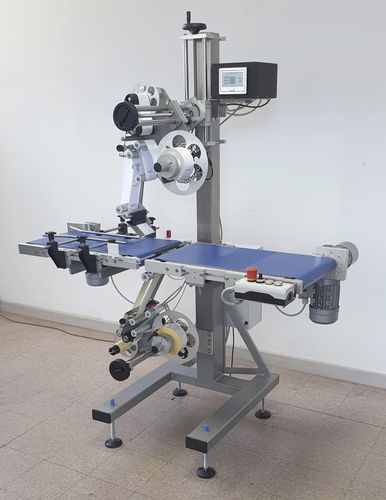

Automatic label applicator Pk-LINE-Up&Down

topbottomfor self-adhesive labels

Automatic labelling machine applying up and down. Pk-LINE-Up&Down Pk-LINE-Up & Down is a labelling machine for flat objects that can apply a label above and a label below. Compact, only 1500 mm long. it can handle products up to 320 mm wide. Pk-LINE-Up & Down can reach 30 mt / min of adjustable speed from the panel on the machine and controlled by inverter. Label width (height on product): from 20 to 100mm Product length: from 20 to 500mm Definition on labelling head: +/- 0,5 mm Definition on product: +/- 1 mm Speed: up to 30 mt/min Label roll length: up to 250 mm Label roll core: 45 or 76 mm Label rewinder diameter: up to 140mm Command panel: color touch-screen 4,3” multilingual Storage: 50 programs Alarm: end of roll, paper broken, external machinery command Encoder for automatic speed adjustment: yes, integrated Recovery missing label: yes one or two labels on product: yes Start masking (anti-bounce): Si Transparent product label: yes Transparent label photocell: yes, optional Collection table at the end of the belt: yes, optional Side positioner with knob: yes “H” shaped support base with vertical positioner with knob: yes Dimensions: 150x85x180 H cm Normatives: CE, IP55
