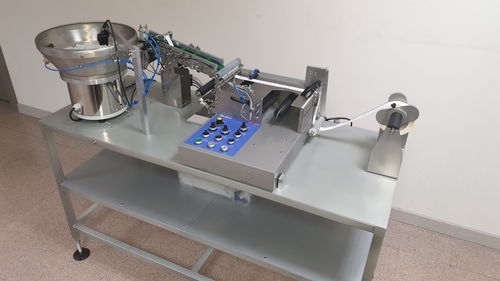

Full automatic labelling machine for little round containers with vibrator feeding. Pk-80.
Pk-80 is an automatic labelling machine for small round products with automatic paper loading and quick for- mat change. Product loading is entrusted to a vibrator which places the products on an out feed belt and then conveys them to the labelling group. The vibrator always puts out the products in the same direction and depending on the type of containers handled, it may or may not integrate a camera system. Pk-80 provides that the product falls after labelling (of one or two labels) into an underlying container, placed on the lower surface of the frame, allowing labelling of products with dimensions from 10 to 35mm in diameter and up to 100mm in height. The labels can be 20 to 100mm wide. Pk-80 can be connected to the most popular industrial thermal printers also with save-ribbon or to the HP technology inkjet marker for variable data print- ing. It can also be connected to the most popular in-line colour printers for printing and direct application on products in a single work cycle.
Container diameters: Da 10 a 40 mm
Label width (height on the vase): da 20 a 140 mm
Label roll dimensions: Up to 200 mm
Roll core dimensions: 45; 76 mm
Materials: PP, PE, PET, paper,, plastics, transparent with black line under
Transparent labels: Yes, optional
Paper feeding: automatic, patented.
Definition: +/- 1 mm
Inkjet color printer connection: yes, optional
Thermal printer connection: yes, optional
Inkjet coder: yes, optional 12,7 or 25,4 mm printing height
Two labels on product: Yes
