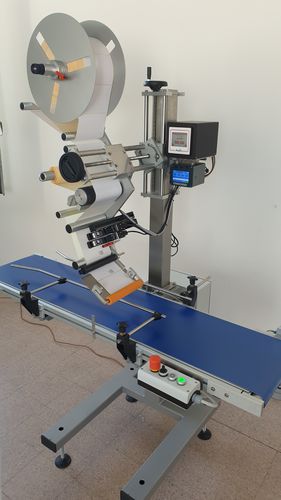

Automatic labelling machine Pk-LINE-Belt-200+Pk-300

horizontalvertical

Pk-LINE-Belt-200 + Pk-300 InkJet apply and print up to 12,7 or 25,4mm of variable data on labels wide format up to 200mm width.  The “H” Base support  STAND-X offers the possibility of installing the labelling machines in a vertical or horizontal position. The frame can be separated between the upper and lower parts and can accommodate the conveyor belt support in the Pk-LINE-Belt-200 version.   The inkjet marker model Pk-300 Inkjet up to 12,7 or 25,4mm (one or two pens) printing area is available for the Pk- 200 labelling head for printing variable data such as batches, numbers, 1D barcodes, 2D bar- codes, dates, times, etc. at the quality of 600x600dpi on one or more lines. It is possible also to install the inkjet coder by the side of the conveyor belt to print variable data directly on products. Label width (height on product): from 20 to 200mm Label length: from 20 to 400mm Definition on labelling head: +/- 0,5 mm Definition on product: +/- 1 mm Speed: up to 30 mt/min Label roll length: up to 350 mm Label roll core: 45 or 76 mm Label rewinder diameter: up to 140mm Command panel: color touch-screen 3,5” multilingual Storage: 50 programs Alarm: end of roll, paper broken, external machinery command Encoder for automatic speed adjustment: yes, integrated Recovery missing label: yes one or two labels on product: yes Start masking (anti-bounce): Si Transparent product label: yes Transparent label photocell: yes, optional Collection table at the end of the belt: yes, optional Side positioner with knob: yes, optional
