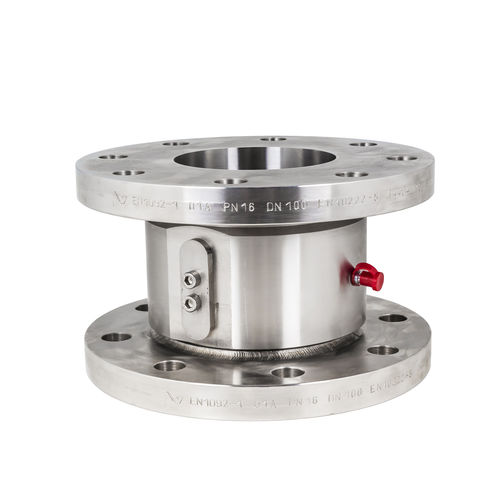

Water rotary union TP 1100 Cfor vacuumfor chemicalsfor refrigerant fluids
Add to favorites
Compare this product
Characteristics
- Medium
- for water, for vacuum, for chemicals, for refrigerant fluids
- Applications
- for the chemical industry
- Material
- stainless steel, carbon steel
- Other characteristics
- radial, ball bearing, flange, compact, for abrasive liquids
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 15 rpm
(94.25 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 16 bar
(232 psi)- Nominal size
Min.: 2 in
Max.: 6 in
Description
Positioning use or non-continuous slow rotation processes
Non-abrasive liquid / Gas (Vacuum and abrasive liquid)
2” to 6”
Up to 16 bar (232 Psi) - Flange dimension may impact
Up to 120°C (248°F) / T°(-): application may impact
Sealing system : Radial seal
Food-processing - Construction - Waste water treatment - Chemical industry & petrochemical refineries - HVAC
Other configurations on request
Technical data
Positioning in rotation based on dual row ball bearing
Good resistance to external tension loads
