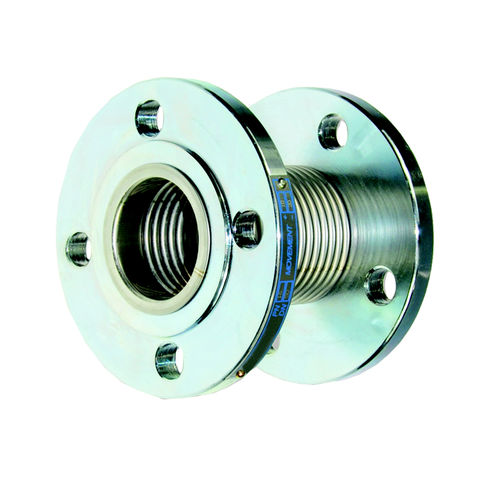

Steel pipe expansion joint roundflangevibration damping
Add to favorites
Compare this product
Characteristics
- Material
- steel
- Configuration
- round
- Installation system
- flange
- Other characteristics
- vibration damping, tension-reducing, pressure-balanced
- Nominal diameter
Max.: 12 in
Min.: 1.5 in
Description
Axial expansion joint PN10/16 flanged connection • Standard use applications
Operating conditions
PN10/16 flange dimension zinc electroplated carbon steel
Bellow materials : DIN 1.4541/AISI321
Range +20/-40 mm, 2″ to 12″ – when internal tube is provided
Range +10/-20 mm, 1″1/2 to 12″ – when internal tube is both provided or not
Also comes with rubber or nitrile bellows
1″1/2 to 120″ (lentil-based design > DN 64″)
PN2,5 to PN40
Range 120-200mm ( > 60mm with external pressure-based design)
Materials : DIN 1.4404/AISI 316/DIN 1.4301/AISI304/DIN DIN 1.439/AISI904L (other on request)
Axial range absorption of piping-based apparatus
