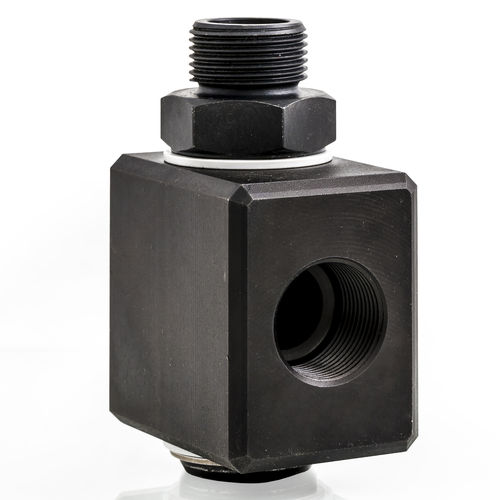

Vacuum rotary union TP 2000for gashydraulichigh-pressure
Add to favorites
Compare this product
Characteristics
- Medium
- for vacuum, for gas
- Applications
- hydraulic, high-pressure, pneumatic, for the chemical industry
- Material
- stainless steel, carbon steel
- Other characteristics
- right-angle
- Rotational speed
Max.: 10 rpm
(62.83 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 350 bar
(5,076 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 4 in
Min.: 0.25 in
Description
Positioning use or non-continuous slow rotation processes
Non-abrasive liquid / Gas / (Vacuum and abrasive liquid)
1/4” to 1” (stainless steel) - 1/4” to 2” (carbon steel)
Up to 350 bar (5076 Psi)
Up to 80°C (176°F)
Sealing system: Composite seal
Hydraulic applications - Pneumatic applications - Chemical industry & petrochemical refineries - Casting - Factory automation
Other configurations on request
Technical data
Male/female thread BSP cylinder
Angular movements only
Positioning in rotation based on bearing bush
High resistance to external tension loads
VIDEO
