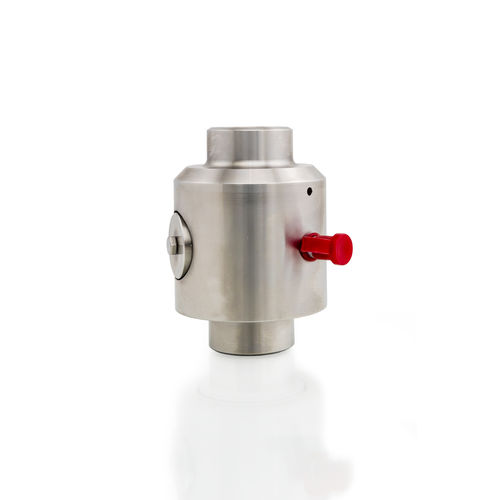

Vacuum rotary union TP 1100 Sfor gaslow-pressurefor the chemical industry
Add to favorites
Compare this product
Characteristics
- Medium
- for vacuum, for gas
- Applications
- low-pressure, for the chemical industry
- Material
- stainless steel
- Other characteristics
- ball bearing
- Rotational speed
Max.: 15 rpm
(94.25 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 40 bar
(580 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 24 in
Min.: 1 in
Description
Operating conditions (can be impacted by size and used materials)
Positioning use or non-continuous slow rotation processes
Non-abrasive liquid / Gas / (Vacuum and abrasive liquid)
1” to 24”
Up to 40 bar (580 Psi)
Up to 120°C (248°F)
Sealing system : Filled PTFE
Food-processing - Construction - Wastewater treatment - Chemical industry & petrochemical refineries - HVAC
Other configurations on request
Technical data
Positioning in rotation based on double row ball bearing
Good resistance to external tension loads
