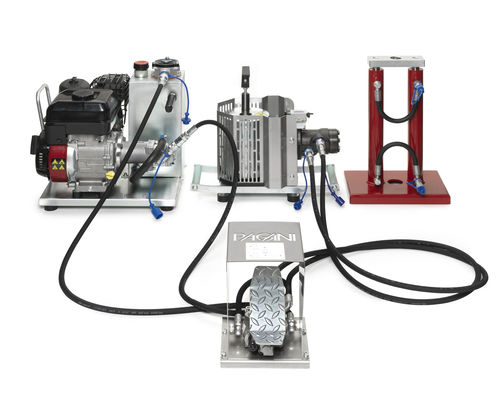

Penetrometer DPM 30

Power supply suited to any situation Penetrometer DPM 30 allows continuous dynamic penetrometric tests to be performed, with petrol or electric engine. Power supplies available Versatility DPM 30 can be used not only for dynamic tests, but also with removable bits, lining tubes for DP tests and with a sampler for soil samples with limited disturbance, that guarantees improved ability to interpret the penetrometric data. Use The dynamic test is performed through a hammer system made up of a 30 kg (66 pound) hammer with a 200 mm (7.87 inch) stroke, operated by hydraulic motor. A hydraulic extractor is used to extract rods, lining tubes and samplers. Lastly, the penetrometer is controlled entirely through a pedal-operated distributor. Technical information Reliability and convenience Assembly of the different penetrometer components is done through practical and intuitive quick couplings. Thanks to its extremely small size, it is easy to transport, allowing to execute tests even on sites inaccessible to normal machines. In addition, the reliability of this type of penetrometer is proven by the hundreds of operational units present in Italy and worldwide. Power supply suited to any situation Penetrometer DPM 30 allows dynamic penetrometric tests to be performed on a portable device that can be used on sites otherwise inaccessible with normal machines. Our machines are CE certified and compliant. As shown by the certifications we have attained, the specifications of our machines have undergone verifications and have been found to comply with CE and USA CFR (Title 29 §1910 Subpart O) directives in order to guarantee users safe, cutting-edge products.
