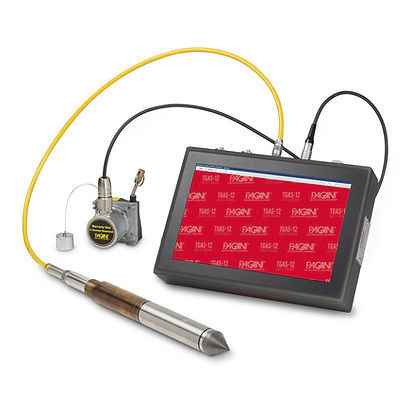

Pressure data-logger TGAS-12

USBwith screenIP65

TGAS-12 is a data-logger capable of acquiring CPTu, S-CPTu, Vane Test and dissipation tests data, without the need for computers and bulky wiring. The capacitive touch-screen monitor makes its use even more smooth and intuitive, while the new simplified program guides the operator every step of the way, to reduce errors and test execution times. This new system automatically detects information regarding the connected piezocone, the installed sensors and the seismic module connection. During the test, five tabs divide the different test types: dissipation, temperature, seismic, and two different CPTu test display modes: graph and live. As with previous versions, once the tests are finished, you can download all data on a USB stick, for subsequent processing with the interpretive software (not included). Two different display modes are available during testing: a screen with the classic chart, as in previous versions, a second live screen where the sensor values are shown through a new design. The dissipation, temperature and seismic tests have been divided into several tabs which can be accessed without having to exit the test. Finally, during the seismic test, you can view the results of the blows previously struck; these improvements allow greater smoothness while using the program. Technical specifications Power supply: 9V DC d 18V DC Typical (maximum) current draw: 1 A (1,5 A) Operatin temperature: -20 ÷ +70 °C IP65 certified Certified electro-magnetic immunity Usable with piezocone versions MKS and later Weight: 4,5 kg Not compatible with CPTU-ACQ software
