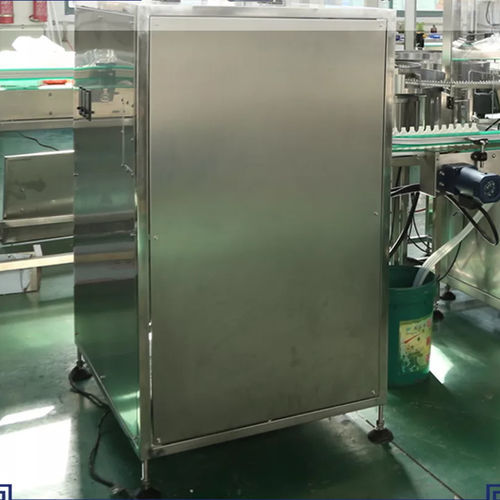

Industrial bottle unscrambler PX-BU100

2022 PX-BU100 automatic bottle unscrambler rated for up to 30-50 bottles per minute depending upon bottle size and shape. All AC Digital Motor Drives and Powered Moving Surfaces Utilize a Direct Drive System, Eliminating Belts, Clutches, Brakes, Gears and Chains. All contact parts are resistant to any flaking, chipping, scuffing, and will not cause any cosmetic damage to the containers during the orientation process: • Bulk Hopper • Bulk Hopper Elevator is controlled with “On Demand” sensor • Stainless Steel Construction • Bottle Backup Sensor • Quick and Easy Container changeover for use with multiple container types Dimensions: (104 cm x 93 cm x 167 cm) Weight: 350 lbs. (160 kg) Electrical Requirements: 110 VAC – 5 AMP (220 VAC optional) Air Requirements: 90 PSI @ 6 CFM 15″ Color Touch Screen Controls (Windows 7 Embedded) · Sorting Conveyor Variable Speed · Inlet Conveyor Variable Speed · Orienter Bowl Variable Speed · Elevator Variable Speed · Hopper Conveyor Variable Speed · Video Monitoring System · Data Storage · Remote Service via WiFi Network (Option) Container Types · Plastic Containers · Round, Square · 35 to 110mm Diameter · 40 to 210mm Height Bulk Hopper & Elevator · 316SS Construction · 200 Liter Hopper Capacity · 200mm Wide Belt Elevator · Bottom Conveyor Bottle Feed 32″ Bottle Orienting Bowl Cleaning Station · Bottle Inverting Station · 4 Ionized Air Jets · Vacuum Intake Transfer Belts · Up-Turn Rail Alarm System · Bottle Back Up Sensor · Orienting Bowl Level Sensor · Low Air Pressure Sensor · Bottle Back Up Sensor
