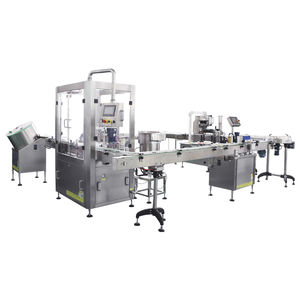

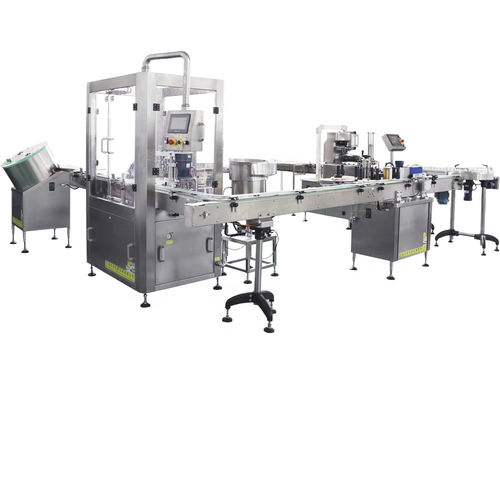

Automatic filling machine PX-BFC80

bottlefor viscous liquidscapping machine

The new PX-BFC80 Smart Automatic medical eye drop bottle plastic plug cover cap PLC filling machine is able to fill 30-40 fills per minute liquid products, depending on fill volume. Easy adjustable for 10-100 ml vials. The four nozzles filling station adopt piston pump, specially suitable for different viscous liquid materials, such as cream, oil, eye drop, etc. Driven by servo motor system, filling with high accuracy of ±1%. Insertion station includes closed cabinet with vibrating bowl feed for 10-50 mm diameter caps. No bottle, no filling, inserting or capping. The machine adopts plunger filling mechanism, filling, filling head automatically into the bottle, tracking filling, liquid does not overflow; The machine adopts high precision measuring mechanism, easy to adjust filling measurement; The assembly, disassembly and disinfection of the combined filling pipe and filling machine are very convenient; According to the different caps, the size of the rolling cap can be adjusted to ensure the appearance of the closed cap; Using frequency conversion regulation system, can easily adapt to a variety of different specifications of bottling
