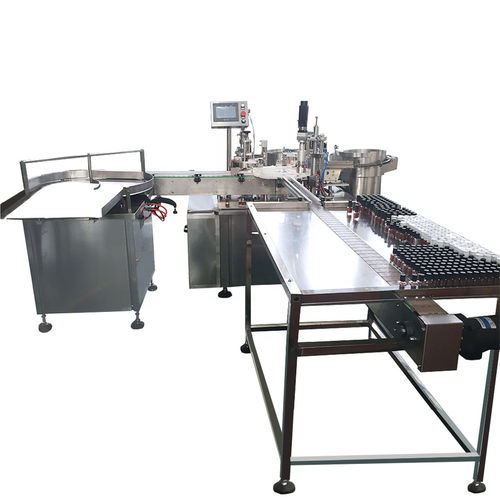

Fully-automatic filling machine bottlefor liquidscapping machine
Add to favorites
Compare this product
Characteristics
- Operational mode
- fully-automatic
- Container type
- bottle
- Product applications
- for liquids, capping machine
- Type
- piston
- Other characteristics
- PLC-controlled
- Throughput
Max.: 6,000 p/h
Min.: 1,000 p/h
- Volume
Max.: 100 ml
(3.4 US fl oz)Min.: 10 ml
(0.3 US fl oz)
Description
The fully automatic small vail bottle liquid filling capping machine is with CE & ISO 9001 certification.The machine is applied to glass or plastic bottles with different sizes and shapes, and suitable for different filling volume. By adjusting the filling volume on touch screen, it can fill liquid with quick speed and high precision. It is widely used for essential oil, eye dropper, perfume, nail polish, lotions and other vial bottle filling.
Servo motor driving
Different from traditional air driving , paixie customize machine by servo motor , it is contributed to precision control and different volume change ,everything will be done by HMI adjustment
Servo filling station construction
1- High precison , we control the servo motor by PLC , the servo contected with the piston pump by screw , the motor running up ,push the screw , then screw push piston at the opposite , so actually the filling volume is equal to motor running distance .
