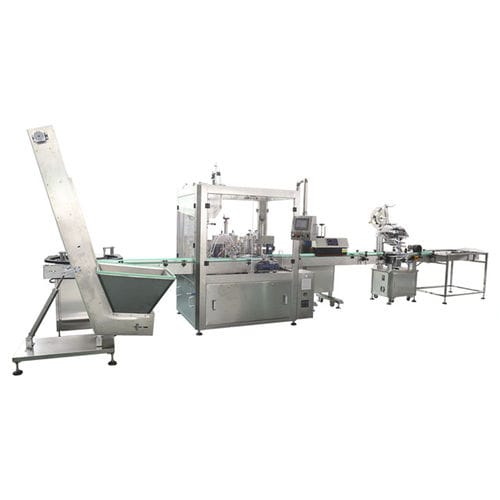

Cosmetic product filling machine PX-BFC80

automaticcontainerfor the cosmetics industry

a tincture filling machine. It is sometimes called a monoblock liquid filler. A monoblock machine combines multiple packaging functions on the same machine. It is the centerpiece of a liquid filling line sometimes referred to as a “Tincture Line” because it fills vials and then inserts “eye-dropper” caps. The eye-dropper type caps are important because the consumer uses “tinctures” by placing a few drops under their tongue. This route of administration avoids contact with the liver and ensures better absorption into the blood. The new 2022 PX SmartFill 80 Integral Filling Line is rated for up to 60 fills per minute, depending on fill volume. Rotating "Intelli-Turret" star wheel for filling, inserting and capping stations. Starwheel size for 5-120ml glass, plastic containers. The double nozzle filling station is equipped with a precision double peristaltic pump or piston pump, servo driven, with an accuracy of +/- 0.5%. Insertion station includes closed cabinet with vibrating bowl feed for dropper caps 10-50 mm in diameter. Single spin chuck cover torque station for different sizes. It is driven by a magnetic torque motor, which can effectively avoid the leakage problem caused by too large or too small torque. If there is no bottle, it will not be filled, inserted or capped. The replacement of different molds makes it possible to pack 4-5 kinds of products. Product characters : 1- High precision 2- Easy operation 3- Well-adapted 4- Human-friendly design
