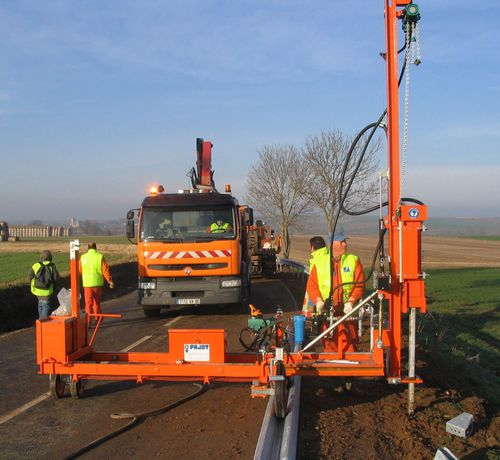

Pneumatic pile-driving hammer SPR108

for highway guardrails

Verticality adjustment in all 3 dimensions Articulated mast with gas jack system for effortless single person raising. Steerable wheels: 2 positions (movement and operation) mounted on shaft bearings, specially designed tires to roll effortlessly in slideways, including type A Pneumatic equipment comprising: air exhaust pipe, line greaser with receiver, 1 outlet for connecting tools Compressed air lifting tackle with 500 kg lifting force with progressive pneumatic remote control and emergency stop within reach of the driver 1 translational movement motor with progressive pneumatic remote control and motor lock in both directions 1 spirit level 1 tool chest 1 handbrake on the free wheel The PAJOT guardrail post pile drivers are ideal for guard rail post installations and offer a robust and durable solution with low operating costs. The machines are compact (folding mast) and lightweight making them easy to transport to the site. They can be fitted with a PAJOT 115, 160 or 300 kg impact hammer and only require a 2200 to 3500 liter compressor pulled by the pile driver to power them. Total weight excluding hammer, including 8 counterweights. ………….850 kg Removable counterweights………….. 57 kg x 8. 456 kg plates Maximum working height under hammer ………..300. 2350 mm Chassis offset…………………………………………………… 1150 mm Mast inclination forward, back and side-to-side Designed for ………………….115, 160, 270 and 300 kg impact hammers
