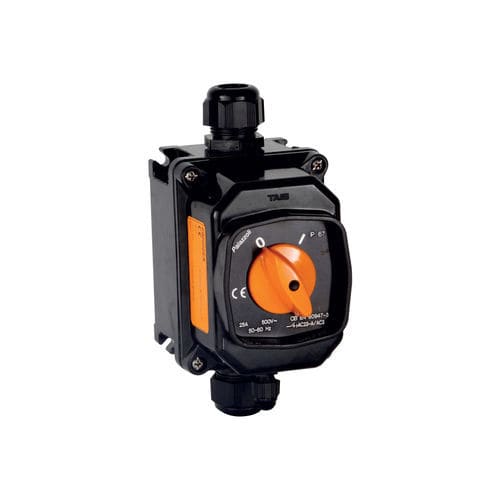

Low-voltage isolator switch 292101EX

explosion-proofIECIECEx

Net weight - 0.76KG Min order quantity - 1 EAN Code - 8014950007844 Gross Weight - 0.88KG EN 60079-0/A11:2013 EN 60079-31:2014 EN 60947-1:2007 EN IEC 63000:2018 EN 60947-3:2009/A1:2012 EN 60947-1:2007/A1:2011 EN 50581:2012 EN 60947-3:2009 EN 60079-15:2010 EN 60079-0:2012 2011/65/EU (RoHS) 2014/34/EU (ATEX) 2012/19/EU (WEEE) 2014/35/EU (LVD) Frequency - 50/60Hz IP Protection degree - IP66 Poles - 2P Manufacturing material - Resin Thermosetting Palazzoli Execution - Wall mounting Type of protection - None Insulation Class - II Dimensions - 175X92X122 mm Hole type - M25 Number of entries in enclosure - 2 CAM layout - 1 Flush-mounting dimensions - - No. discs - - Function Apparatus Control - One way switches ATEX application zone - Zona/Zone 2, 21 and 22 Notified body ATEX - 0051 Certificate Number IECEx - IECEx EXA 16.0005X Atex Dust Nominal Current - 16 A Atex Gas Nominal Current - 16 A EX Marking Dust 1 - Ex tb IIIC T85 °C Db EX Marking Gas 1 - Ex nR IIC T6 Gc ATEX EU Type Certificate - TÜV IT 14 ATEX 004 X Group & Cat. ATEX GAS - II 3G Group & Cat. ATEX DUST - II 2D
