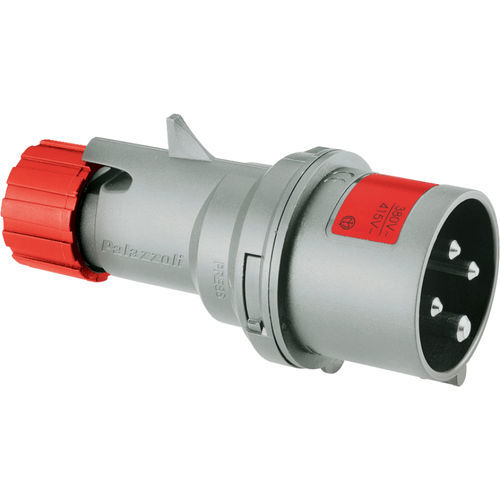

Low-voltage electrical plug 700124IEC
Add to favorites
Compare this product
Characteristics
- Features
- low-voltage
- Other characteristics
- IEC
- Current
16 A
- VAC
110 V, 690 V
Description
Net weight - 0.11KG
Min order quantity - 10
EAN Code - 8014950000623
Gross Weight - 0.11KG
Max conductor section - 6 mm²
Min conductor section - 1 mm²
Tightening diameter - 8÷13 mm
Shock resistance - IK08 according to IEC/EN 62262
Frequency - 50/60Hz
IP Protection degree - IP44
Poles - 2P+
Clock Position - 4h
Manufacturing material - Technopolymer Recyclable Palazzoli
Execution - Mobile
Terminals type - Screw - direct tightening
Colour - Grey RAL 7042
Standard plug-socket - IEC 60309-2
EN 50581:2012
EN IEC 63000:2018
EN 60309-1:1999
EN 60309-2:1999/A2:2012
EN 60309-1:1999/A1:2007
EN 60309-1:1999/A1AC:2014
EN 60309-2:1999
EN 60309-2:1999/A1:2007
EN 60309-1:1999/A2:2012
