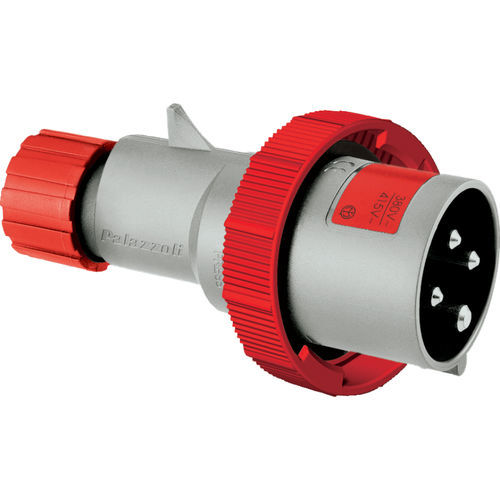

Waterproof electrical plug 710124low-voltageIECRoHS
Add to favorites
Compare this product
Characteristics
- Protection level
- waterproof
- Features
- low-voltage
- Other characteristics
- IEC, RoHS
- Current
16 A
- VAC
110 V, 690 V
Description
Net weight - 0.14KG
Min order quantity - 10
EAN Code - 8014950036066
Gross Weight - 0.15KG
EN 60309-1:1999/A1:2007
EN 60309-1:1999/A1AC:2014
EN 60309-1:1999
EN 60309-2:1999/A2:2012
EN 60309-2:1999
EN 60309-2:1999/A1:2007
EN IEC 63000:2018
EN 50581:2012
EN 60309-1:1999/A2:2012
2014/35/EU (LVD)
2012/19/EU (WEEE)
2011/65/EU (RoHS)
Front panel - 710124s.png
Tightening diameter - 8÷13 mm
Min conductor section - 1 mm²
Max conductor section - 6 mm²
Shock resistance - IK08 according to IEC/EN 62262
Frequency - 50/60Hz
IP Protection degree - IP67
Poles - 2P+
Clock Position - 4h
Manufacturing material - Technopolymer Recyclable Palazzoli
Execution - Mobile
Terminals type - Screw - direct tightening
Colour - Grey RAL 7042
Standard plug-socket - IEC 60309-2
Catalogs
General Catalog 2011 - 2012
468 Pages
INSTALLATION selection
224 Pages
General Catalogue 2014/2015
466 Pages
