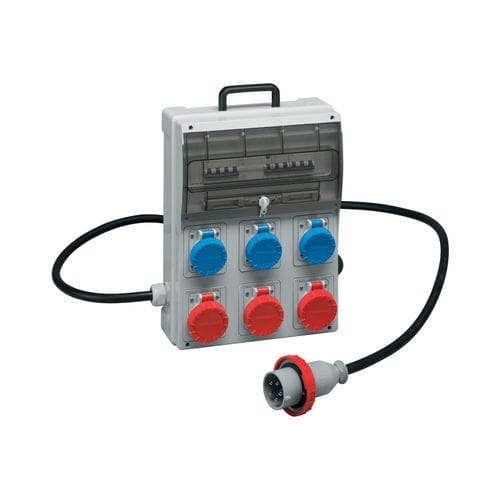

Equipped electrical enclosure 670060modularplasticpower distribution
Add to favorites
Compare this product
Characteristics
- Type
- equipped
- Configuration
- modular
- Material
- plastic
- Application
- power distribution
- Other characteristics
- pre-assembled, with electrical socket
Description
Net weight - 8.97KG
Min order quantity - 1
EAN Code - 8014950039951
Gross Weight - 9.33KG
EN 61439-1:2011
EN IEC 63000:2018
EN 61439-4:2013
2014/30/EU (EMC)
2014/35/EU (LVD)
2012/19/EU (WEEE)
2011/65/EU (RoHS)
Frequency - 50/60Hz
IP Protection degree - IP66
Poles - 4P
Manufacturing material - Technopolymer Recyclable Palazzoli
Terminal type - -
Socket Protection - MAGNETOTERMICO E DIFFERENZIALE
Execution - PORTABLE
Outlet Sockets - 6
Outfit - WITHOUT PLATE
Insulation Class - II
Dimensions - 350X456X160 mm
Industr. sock.-out. 16A 2P+E 2 - 4
Industr. sock.-outl. 16A 3P+E - 2
Plug type - 3P+N+T - 32A
Switch type - MCB 4P - 32A
Differential protection - 32A 4P 30mA
Emergency button - -
