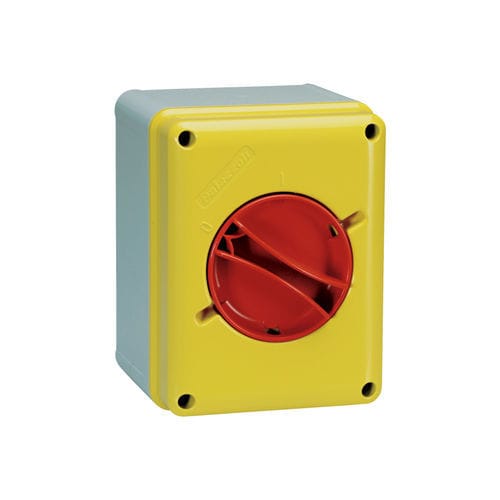

Rotary isolator switch 2081622-poleindustrialIEC
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Number of poles
- 2-pole
- Applications
- industrial
- Certifications
- IEC
- Primary current
16 A
Description
Net weight - 0.57KG
Min order quantity - 1
EAN Code - 8014950014903
Gross Weight - 0.65KG
EN 60947-3:2009/A2:2015
EN IEC 63000:2018
EN 60947-1:2007/A2:2014
EN 60947-3:2009
EN 60947-1:2007
EN 60947-3:2009/A1:2012
EN 60947-1:2007/A1:2011
2012/19/EU (WEEE)
2014/35/EU (LVD)
2011/65/EU (RoHS)
Min conductor section - 1 mm²
Colour - Yellow RAL 1018, Grey RAL 7035, Red RAL 3000
Terminals type - Screw - indirect clamping
Max conductor section - 10 mm²
Shock resistance - IK08 according to IEC/EN 62262
Frequency - 50/60Hz
IP Protection degree - IP65
Poles - 2P
Manufacturing material - Technopolymer Recyclable Palazzoli
Execution - Wall mounting
Insulation Class - II
Operating category - AC-23A / AC-3
Dimensions - 158X121X126 mm
Depth - -
CAM layout - 1
Flush-mounting dimensions - -
No. discs - -
Function Apparatus Control - One way switches
