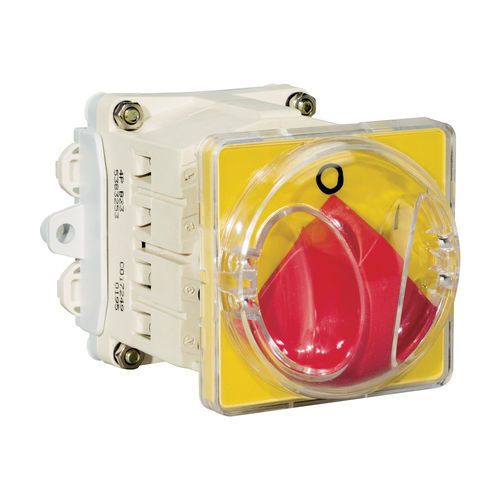

Rotary isolator switch 2651622-poleenclosedindustrial
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Number of poles
- 2-pole
- Construction
- enclosed
- Applications
- industrial
- Certifications
- IEC
- Primary current
16 A
Description
Net weight - 0.38KG
Min order quantity - 1
EAN Code - 8014950015139
Gross Weight - 0.38KG
EN IEC 63000:2018
EN 60947-1:2007/A2:2014
EN 60947-3:2009/A1:2012
EN 60947-1:2007/A1:2011
EN 60947-1:2007
EN 60947-3:2009/A2:2015
EN 60947-3:2009
2011/65/EU (RoHS)
2012/19/EU (WEEE)
2014/35/EU (LVD)
Front-plate dimension - 67x67
Terminals type - Screw - indirect clamping
Min conductor section - 1 mm²
Storage room temperature MAX - +80°C
Max conductor section - 10 mm²
Min. Amb. Temp. - -25°C
Frequency - 50/60Hz
IP Protection degree - IP65
Poles - 2P
Manufacturing material - Technopolymer Recyclable Palazzoli
Width - - mm
Execution - Board
Dimensions - 84X72X111 mm
Depth - 75
CAM layout - 1
Flush-mounting dimensions - -
No. discs - -
Rated impul. withstand voltage - 4
Function Apparatus Control - One way switches
