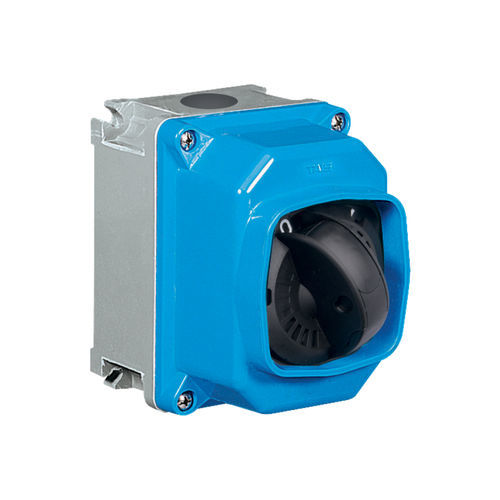

Rotary isolator switch 2921012-poleindustrialIEC
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Number of poles
- 2-pole
- Applications
- industrial
- Certifications
- IEC
- Primary current
16 A
Description
Net weight - 0.76KG
Min order quantity - 1
EAN Code - 8014950205547
Gross Weight - 0.86KG
EN 60947-1:2007/A1:2011
EN 60947-3:2009/A2:2015
EN 60947-1:2007
EN 60947-1:2007/A2:2014
EN IEC 63000:2018
EN 60947-3:2009
EN 60947-3:2009/A1:2012
2012/19/EU (WEEE)
2011/65/EU (RoHS)
2014/35/EU (LVD)
Min conductor section - 1 mm²
Terminals type - Screw - indirect clamping
Colour - Blue RAL 5015 (Cover), RAL 7042 (Base)
Max conductor section - 10 mm²
Shock resistance - IK08 according to IEC/EN 62262
Frequency - 50/60Hz
IP Protection degree - IP66/IP67
Poles - 2P
Manufacturing material - Resin Thermosetting Palazzoli
Execution - Wall mounting
Type of protection - None
Insulation Class - II
Dimensions - 125X95X122 mm
Hole type - M25
Number of entries in enclosure - 2
Depth - -
CAM layout - 1
Flush-mounting dimensions - -
No. discs - -
Function Apparatus Control - One way switches
