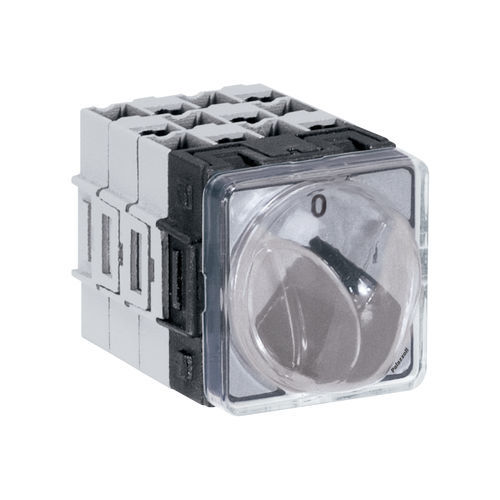

Selector switch 210121cammultipoleIP65
Add to favorites
Compare this product
Characteristics
- Type
- selector, cam
- Number of poles
- multipole
- Protection level
- IP65
- Other characteristics
- control, electromechanical, emergency stop
- Primary current
12 A
- Voltage
690 V
Min.: 50 V
Max.: 500 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description
Net weight - 0.11KG
Min order quantity - 1
EAN Code - 8014950016204
Gross Weight - 0.11KG
EN 60947-3:2009/A2:2015
EN 60947-1:2007/A1:2011
EN 60947-3:2009/A1:2012
EN 60947-3:2009
EN 60947-1:2007
EN 60947-1:2007/A2:2014
2014/35/EU (LVD)
Min conductor section - 1,5 mm²
Front-plate dimension - 48x48
Max conductor section - 6mm²
Additional IPdegree protection - IP65 escutcheon
Terminals type - Screw - indirect clamping
Frequency - 50/60Hz
IP Protection degree - IP20
Poles - 1P
Manufacturing material - Technopolymer Recyclable Palazzoli
Width - -
Execution - Blackplane
Dimensions - 48X48X64 mm
Depth - 33
CAM layout - 0
Flush-mounting dimensions - 48X48X33 mm
No. discs - 1
Function Apparatus Control - One way switches
