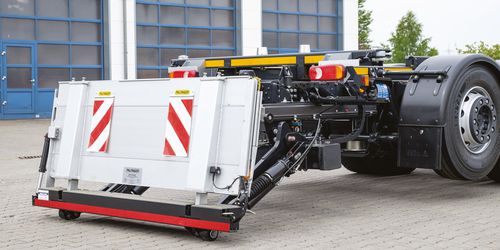

Standard lift gate MBB R 2000 LH

retractablefoldable

• Double-fold platform • Specially designed for short overhangs and swap bodies (BDF) • All-aluminium, anodised platform design • Extension/retraction and folding/unfolding processes are effected hydraulically with just one operating step • Platform housing serves as underride guard • Self-assembling bridging plate with fold-back mechanism • Powerful cylinder for horizontal positioning of the tail lift • Moving rails in aluminium as standard • Completely pre-assembled with energy chain • Lifting mechanism painted in RAL 9011 • Patented fast installation for all common vehicles with chassis widths of 758 – 800/810 – 870 mm Main beam - 180 x 180 mm Lifting gear hydraulics - 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder Lift arm pitch /Lift arm length - 1300 mm Load centre - lengthwise - 750 mm Load centre - across center - Central 50% of rated load on one side Inclination angle of the platform - 0° to -10°
