Standard lift gate MBB TRAINLIFT
for wheelchairvehiclesemi-automatic

standard lift gate
standard lift gate
standard lift gate
standard lift gate
Add to favorites
Compare this product


Characteristics

Type
standard
Product applications
for wheelchair, vehicle
Other characteristics
semi-automatic
Load

300 kg, 350 kg
(661.4 lb, 771.6 lb)

Description

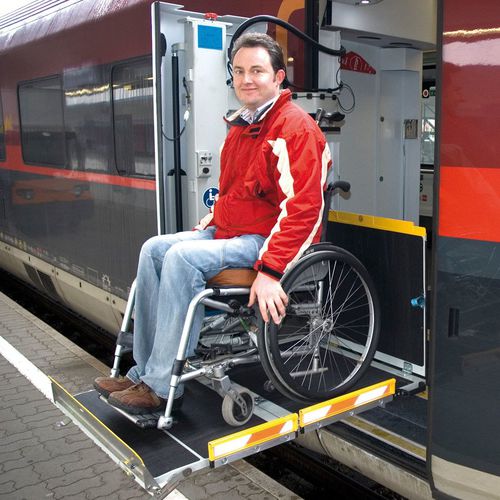

• Specially developed and produced for vehicle manufacturer requirements • Enables wheelchair users to enter and exit the vehicle safely • Operation by trained staff only • Lifting height up to 1,400 mm • Retrofitting possible SAFETY DEVICES • Automatic roll stop • Lowering movement by gravity • Lifting/lowering only possible when swiveled out and engaged • Anti-slip surface • Lift drive secured with stroke limiting valve • Audible and visuel signals • Certified acc. to TSI PRM 1300/2014 • Fire protection acc. to EN 45545 • Elegant cover (option) • Protection against vandalism by special coating on request
