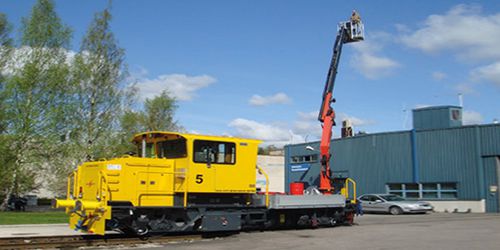

Rail-mounted telescopic boom lift PKR 150

Distinctive, with their upward-folding articulated arms, and indispensable when peak performance is required in the overhead line area; whether working with load hooks, winches, work baskets, or other additional equipment - the denser the tangle of contact wires, suspension ropes, and guy wires, and the greater the number of overhead obstacles, the greater the efficiency and cost-effectiveness achieved with PKR cranes. Gone are the days when interfering system components had to be dismantled first to clear the work site for crane operations! • Optimal lifting forces in all arm positions thanks to the Railway Power Link System • PLd-compliant control system according to EN13849 • Secure data transmission according to the CANopen Safety Protocol • Combined operation of more units mounted on the same vehicle • Safe operation through lateral and vertical movement limiters according to EN 14033 • Versatile range of applications due to a large pool of crane attachments • Efficient and fast due to continuous slewing gear • High user-friendliness through radio remote control • More comfort and safety through soft stop Max. lifting moment - 134.4 kNm Max. lifting moment - 13.7 mt Slewing angle - ∞
