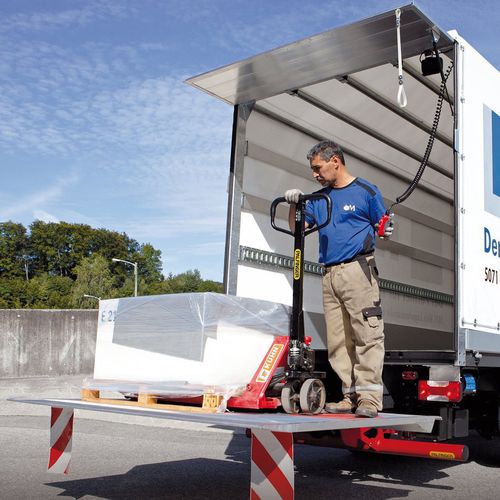

Standard lift gate MBB C 750 L

for trucksvehicle

• The lightweight tail lift for small vans up to 6,5 t • Torsion-resistant two-cylinder lifting mechanism • Even, parallel movement to loading floor • Single-piece underride guard as standard • Simple attachment thanks to boltable mounting plates Available for • Mercedes-Benz Sprinter 3/5 • Volkswagen Crafter 30/35/50 • Iveco Daily • Renault Master • Ford Transit • Citroen Jumper / Fiat Ducato / Peugeot Boxer • Further vehicle types on request Main beam - 120 x 80 mm Lifting gear hydraulics - 1 lifting cylinder / 1 tilting cylinder Platform overlap with floor - -57 mm Lift arm pitch /Lift arm length - 460 mm / 1120 mm / 1240 mm Load centre - lengthwise - 600 mm Load centre - across center - Central 50% of rated load on one side Inclination angle of the platform - 90° to -10
