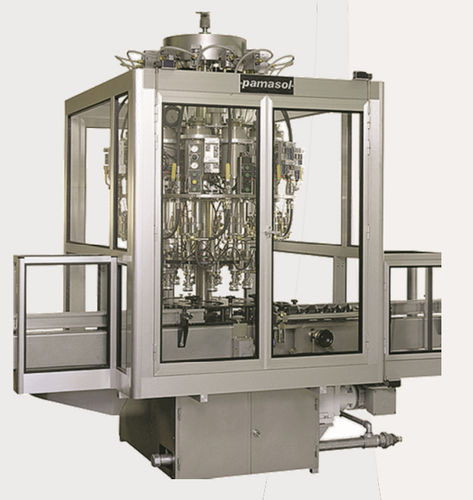

Industrial filling station 2018/300

pressurerotarypneumatic

Standard design with 200 ml to 300 ml metering cylinders. Centomat rotary stations are suitable for the filling and sealing of products in large series. The individual process modules may be combined to form a high-performance system or installed in an existing filling line to increase production efficiency. The Centomat propellant filling station fills the propellant in exact doses through all commercially available valves into the closed containers. 100 - 600 containers per minute According to requirement 6, 9, 12, 18 or 24 propellant fillers can be mounted. The effective performance dépends on the quantity of propellant fillers, the quantity of propellant and on the type of valve used. Height of container 80 - 260 mm Special execution: 60 - 80 mm and up to 320 mm Diameter of container 35 - 66 mm Available dosing cylinders - Standard execution: up to 200 ml or 300ml - Special execution: up to 5 ml, 20 ml, 400 ml or 500 ml
