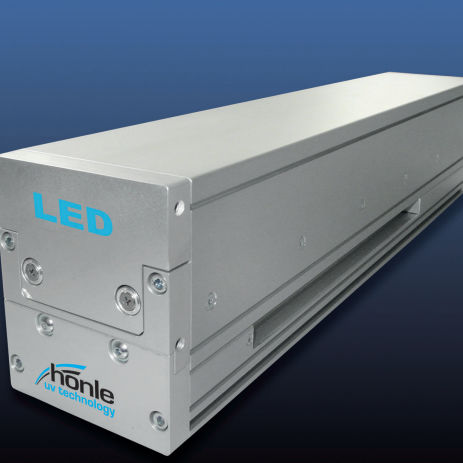

UV curing unit Powerline Flexo LC

high-performance

Max. irradiation intensity: up to 25.000 mW/cm² Wavelength: 365, 385, 395 and 405 nm Water cooled • High irradiation power •Compact dimensions • Low weight •Different wavelengths available • Low temperature load • No warm-up phase • Continous regulation • Energy-saving • long service life The LED Powerline Flexo LC is a high-performance UV-LED array for intermediate curing (pinning) and final curing for printing applications. Other application fields are the curing of varnishes or UV reactive adhesives and pottings. The typical LED service life is more than 20.000 hours*. The LEDs can be switched on and off as often as required without any warm-up or cooling phase. The LED Powerline Flexo LC is available in wavelengths of 365/385/395/405 nm +/- 10 nm. This variety allows to adjust the wavelength to each application in question. • Driving and monitoring of each LED segment via a highly-efficient LED driver which is integrated in the housing • Separate regulation of each LED segment, e.g. for format size control • Monitoring of each LED segment regarding short-circuit, interruption and excess temperature • Registration of operating hours of LED segments • Analogue dimming of the segments via a 0-10 V-signal • Digital PLC-interface (Emergency-stop, LED-on, LED-off, LED-failure) • All modules BUS-controlled via RS485 and separate operation-display or optional via Ethernet
