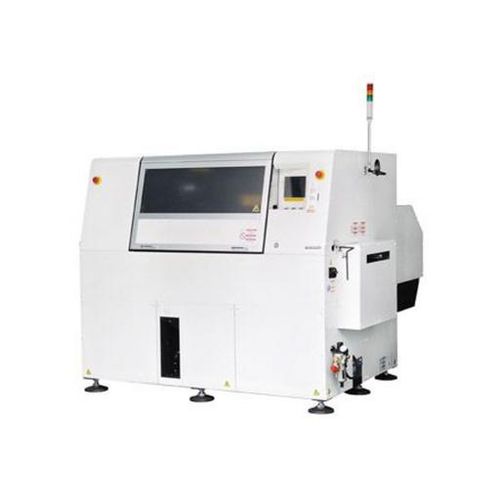

Partition insertion machine AV132

pneumaticfor axial lead componentsfor printed circuit boards

The AV high-speed axial lead component insertion machine features a compact design and 30,000 CPH performance. The dense supply unit configuration is available in 40 or 80 component inputs with optional jumper wire and accommodates both ammo pack and reel. Quicken changeover with the dual partition setup and set up the next job while the current one is being produced. The AV132 inserts components in four directions: 0°, 90°, 180°, and 270°. Maximize your productivity through the simultaneous use of 26 and 52mm taped components and quick, full auto-recovery. • High-speed axial insertion. 30,000 CPH with 40 or 80 inputs. • Reduce load time by running two PCBs at once • Low cost per insertion • Easy-to-use touch panel PCB Dimensions (mm) - L 50 mm x W 50 mm to L 508 mm x W 381 mm Maximum Speed * - 0.12 s/component [*1] No. of Component Inputs - 40 + 40 + JW (JW is optional) Applicable Components - Resistors 1/8 W,1/6 W,1/4 W,1/2 W, Jumper wire (tin-plated wire), Diodes, Cylindrical ceramic capacitor PCB Exchange Time - About 2.0 s Insertion Direction - 4 directions (0°, 90°, 180°, 270°) Electric Source * - 3-phase AC 200 V, 3.5 kVA [*2] Pneumatic Source - 0.5 MPa, 200 L/min (A.N.R.) Dimensions (mm) * - W 3,106 mm x D 2,300 mm x H 1,575 mm [*3] Mass * - 2,648 kg [*4} Model No. - NM-EJA5A
