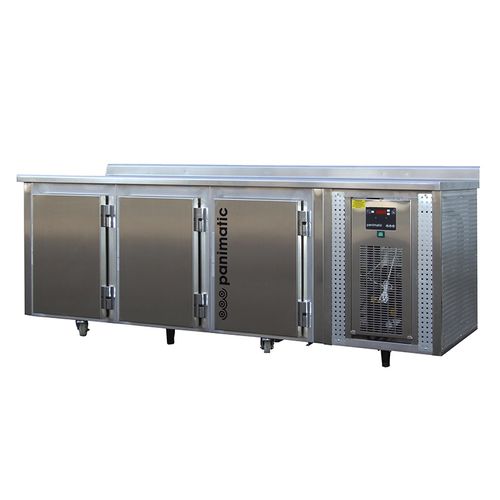

Industrial refrigerator TRD series

cabinetbenchtophorizontal

Benchs 2 to 8 doors With removable modules for 400x600 pastry trays 10 LEVELS PER DOOR Without top or with grade 304 stainless steel or granite 30/40 mm top. Interior and exterior BENCH in stainless steel on feet and castors Fixed angle bars with 60 mm spacing on racks which are easily removed for cleaning Injected polyurethane insulation, 50 mm Standard model: hinging on the right. Rounded interior angles Stainless steel refrigerated top Positioning of the refrigeration unit to the right or left Integral control panel for a remote refrigeration unit 240V single phase TECHNICAL INFORMATIONS: Depth 815 mm without door - Depth 875 mm with door - Depth 880 mm with door and stainless steel top Height: 855 mm height, of which feet: 105 mm Module width: 560 mm - Width of refrigeration unit housing: 560 mm 2 DOORS: length 1,805 mm with housing - 1,240 mm without housing 3 DOORS: length 2370 mm with housing - 1805 mm without housing 4 DOORS: length 2,935 mm with housing - 2,370 mm without housing 5 DOORS: length 3500 mm with housing - 2935 mm without housing 6 DOORS: length 4,065 mm with housing - 3,500 mm without housing 7 DOORS: length 4,630 mm with housing - 4,065 mm without housing 8 DOORS: length 5,195 mm with housing - 4,630 mm without housing OPTIONS Back plate in stainless steel or granite Air and water cooled refrigeration unit Water-based refrigeration unit sound proofed refrigeration unit tropicalised refrigeration unit remote refrigeration unit. Water recovery trough with resistance
