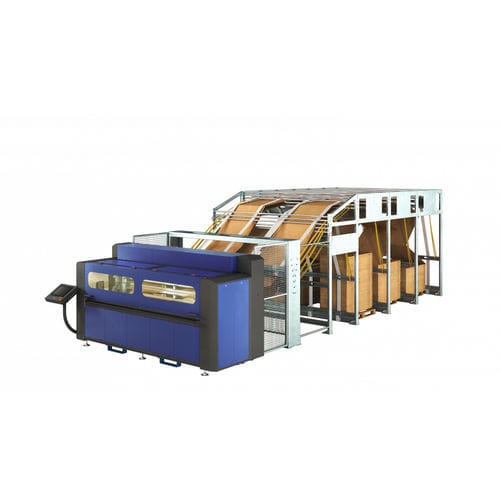

Automatic cardboard box/case erector COMPACK
adhesive tapehigh-speedpneumatic

Automatic cardboard box/case erector - COMPACK - Panotec - adhesive tape / high-speed / pneumatic
Automatic cardboard box/case erector - COMPACK - Panotec - adhesive tape / high-speed / pneumatic
Automatic cardboard box/case erector - COMPACK - Panotec - adhesive tape / high-speed / pneumatic - image - 2
Automatic cardboard box/case erector - COMPACK - Panotec - adhesive tape / high-speed / pneumatic - image - 3
Automatic cardboard box/case erector - COMPACK - Panotec - adhesive tape / high-speed / pneumatic - image - 4
Automatic cardboard box/case erector - COMPACK - Panotec - adhesive tape / high-speed / pneumatic - image - 5
Automatic cardboard box/case erector - COMPACK - Panotec - adhesive tape / high-speed / pneumatic - image - 6
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Technology
adhesive tape
Other characteristics
high-speed, pneumatic
Throughput

2 p/min

Description

High-level Technology for Packaging on Demand Compack combines technology and savings. A perfect tool for companies that need to produce medium to small batches or a small number of boxes. The machine is easy to operate and features the reliability of Panotec Systems. Suitable for: - small to medium-sized enterprises - need for low-medium productivity levels - more than 2 boxes per minute - production of small batches or in flexibility (batch size 1) Features Tools for cutting and creasing COMPACK has 1 transversal unit and up to 12 longitudinal units. Each unit can be equipped with different types of tools and sets up automatically. transversal unit Groove cut Standard Creasing longitudinal units Pressure cut Standard Creasing Control panel The control terminal is fitted on a pivoting arm rotating up to 180° in order to allow the operator to manage the control panel and the machine operations at the same time. The computer included is an industrial PC, suitable to be used in working environments subject to temperature changes, high levels of humidity, dust and corrosion. Carboard feeder Compack is available in 3 versions. By using the cardboard lifter, the machine choses, the most suitable cardboard width available in order to optimize cardboard consumption. Single The machine can work with single cardboard sheets (F) or with one fanfold stack (1CL) or with both. Dimensions of the cardboard: max. 2500, min. 480mm. Multiple: 2 widths side by side With this configuration you can use 2 to 3 fanfolds side by side (SbS).

VIDEO

Catalogs

Compack
Compack
5 Pages
Compack 3
Compack 3
7 Pages
