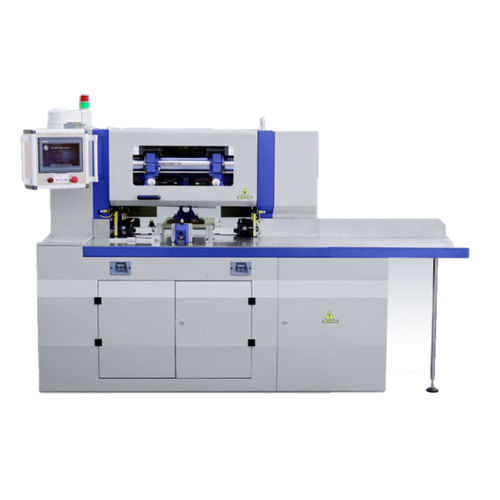

Programmable paper trimmer ACCUTRIM HD 1680

automatic

• Minor format changes in less than 1 minute • Complete format change in less than 3 minutes • PC based machine control • Easy to use color touch screen for fast programming and troubleshooting • Versatile 1 or 2 person operation • 128 MB job storage • Safety light barrier controls Manual feeding of products to the in feed clamp followed by automatic movement into the main clamping and trimming area. To achieve the best trim quality, the knives are driven mechanically and the clamping is done hydraulically. Trimmed products can be automatically returned (for one operator mode) or delivered onto the out-feed conveyor for maximum through-put. Automatic cycling (with adjustable timer delay) or push button single cycling can be selected. The programmable PC based controller can store multiple jobs. Servo drives set the in-feed carriage, head stop and side knives automatically through the easy to use color touch screen panel. • 1 set of cutting table cassettes (7 pcs) • Air device for aid in paper waste ejection (house air required) • Central lubrication system • Break away head stop (for use with case bound books blocks) • Out feed delivery conveyor (1 meter length) • 2 sets of high speed knives in protective boxes • Spare cutting sticks • Knife setting gauge • 2 sets of quick-change knife holders • 1 set of tools with tool box • 4 pressing pad holders
