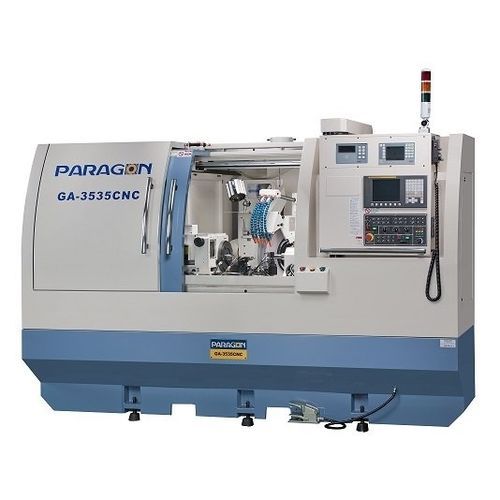

Angular grinding machine GA seriesworkpiecehorizontalCNC
Add to favorites
Compare this product
Characteristics
- Type
- angular
- Applications
- workpiece
- Structure
- horizontal
- Control type
- CNC
- Number of axes
- 2-axis
- Other characteristics
- hydraulic, hydrostatic
- Distance between centers
200 mm, 350 mm, 1,000 mm
(8 in, 14 in, 39 in)- Grinding wheel diameter
355 mm, 510 mm
(14 in, 20 in)- Machine weight
2,700 kg, 4,300 kg, 4,900 kg
(5,952.48 lb, 9,479.88 lb, 10,802.65 lb)
Description
The unique models of angular cylindrical grinding machines by PARAGON are suitable for long, multi-steps, and profile cylindrical grinding.
The GA CNC Series are unique models of angular cylindrical grinding machines by PARAGON are suitable for long, multi-steps, and profile cylindrical grinding, which offer the best choice for high accuracy. The main features are as follows：
Equipped with FANUC color screen, the latest technology in digital control systems.
Multi-function, high roundness Workhead
Hydraulic and manual adjustable Tailstock
High rigid Machine Base with Hydrostatic Lubrication on guideways
Heidenhain sub-μm Linear Scale with closeloop feedback
X/Z axes have high torque Servo Motor directly coupled to the class C1 Ballscrew.
