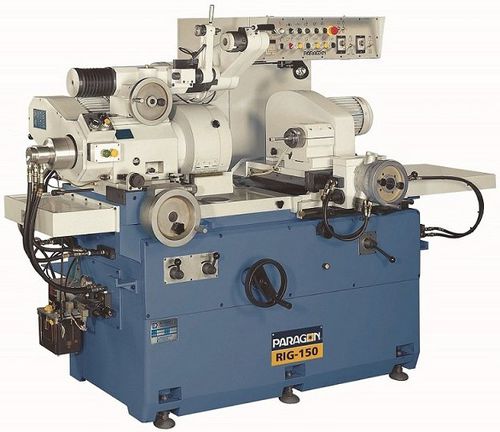

Internal cylindrical grinding machine RIG-150

workpiecehorizontalPLC-controlled

The RIG series internal grinding machine is suitable for inner diameter of workpiece. The efficient and reliable programming of grinding and dressing cycles is suitable for mass production and ensures the precise concentricity on inner diameters. The main features are as follows： Nimble and precise positioning wheelhead. Multi-function and manual adjustable workhead. Heidenhain sub-μLinear scale with closeloop feedback on X axis. Hydraulic driven automatic wheel infeed. Hydraulic lubrication features low friction factors, and more rigidity and high positioning accuracy. Angular Contac Ball Bearing in wheelhead handles both axial and radical loads to maintain the stability of high precision during high-speed rotation. Grinding range (ID)(mm) Ø6-Ø150 Max. Grinding depth(mm) 150 Max. table traverse(mm) 530 Machine Dimension (WxDXH mm) 2,600 x 1,800 x 1,400
