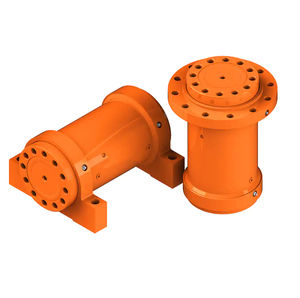

Helical actuator L10-Series

rotaryhydraulicfor demanding applications

The Helac L10 Series is the smallest and most compact helical rotary actuator. Ideal for applications where space is a premium, the ultra-compact L10 Series features extremely high thrust capacity and high shock resistance with 180° or 360° rotation. Parker Helac Ll O Series Compact Hydraulic Rotary Actuator is the smallest and most compact helical hydraulic actuator. Ideal for applications where space is a premium, the ultra-compact Ll O Series features extremely high thrust capacity in a slick cylindrical design with flange mounting output. Helac's hydraulic sliding helical spline technology is non self-locking while providing high shock resistance and high-holding torque for demanding applications. Functioning as a rotating device, mounting bracket and load bearing structure the Ll O Series eliminates the need for external bearing systems, brakes or locking devices. Six standard sizes with torque output up to 25,000 in-lbs at 3,000 psi. 180-degree and 360-degree rotary actuators available. Click on Where to Buy to view a list of Helac hydraulic rotary actuator distributors and prices. Markets: Agriculture Construction Energy Marine Material Handling Military Mining Truck/Trailer Feature and Benefits: Powerful — high torque, high bearing capacity Durable - moving parts enclosed, suitable for harsh environments Compact - high power density, fits in tight spaces Holds Position — zero internal leakage, smooth operation, no external brake required Simplifies — Eliminates bearings, linkages & brackets, reduces bill of materials Backdrives in Overload Conditions — Hydraulic fuse, prevents mechanical damage
