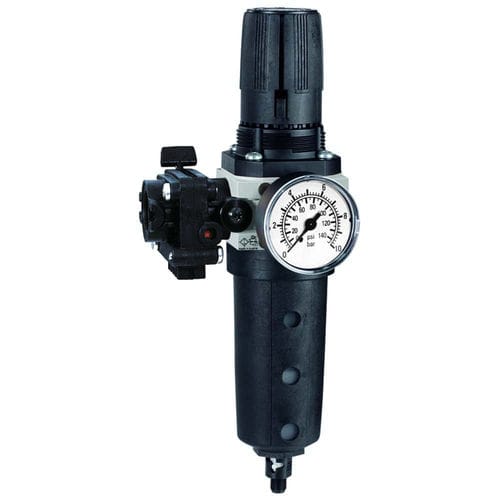

Gas filter-regulator-lubricator P3XAN

airwaterpressure

P3XAN is a 107mm combo, 1/2",3/4" BSPP (NPT 1/2") port, slide valve, 5/40µ, high tech polymer bowl with combined manual/semi-auto or auto drain. Max pressure 16 bar with P2 ranges 0 to 4, 8 & 16 bar. Temp -10°C to 60°C. Parkers P3X series combo is a configured 2-piece unit consisting a slide valve and filter regulator as one part number. The P3X combo - provides a lockable slide valve to prevent unauthorised adjustment and accurate pressure regulation with high moisture removal efficiency. - This fully featured P3X series combo can be assembled ready for use. - Markets - • Machine Tools - • Misc. Industrial - • Misc. Manufacturing - • Air and Gas - • Appliances - • Factory Automation - • Entertainment Automation - • Molding - • Packaging Machinery - • Printing and Marking Equipment - • Vehicle Assembly Facilities - • Wearing Apparel - • Food and Beverage - • Misc. Processing - Features/Benefits - • Padlockable - • When the inlet pressure is turned off the downstream vents through the exhaust port. - • P3X Series Slide Valves provide shut off line pressure to prevent unauthorised adjustment - • Integral 1 /2 or 3/4 ports - • High efficiency 5 micron element as standard - • Excellent water removal efficiency - • Secondary pressure ranges 8 and 16 bar - • Rolling diaphragm for extended life - • Secondary aspiration plus balanced poppet provides quick response and accurate pressure regulation - • Low temperature -40'C with combined manual/semi - auto drain as standard
