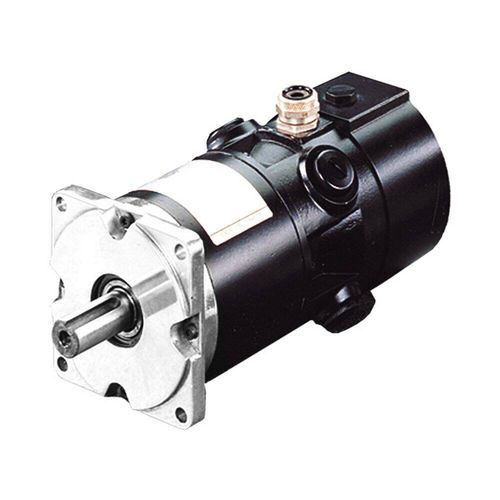

Performance servo motor RS series
DCsynchronousIP54

Performance servo motor - RS series - Parker Electromechanical and Drives Division Europ - DC / synchronous / IP54
Performance servo motor - RS series - Parker Electromechanical and Drives Division Europ - DC / synchronous / IP54
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Protection class
IP54, IP40
Configuration
compact
Number of poles
4-pole
Other characteristics
performance, low-speed
Intensity

Min.: 1.5 A

Max.: 28 A

Torque

Min.: 0.05 Nm
(0.0369 ft.lb)

Max.: 13 Nm
(9.5883 ft.lb)

Rotational speed

Min.: 2,000 rpm
(12,566.37 rad.min-1)

Max.: 3,000 rpm
(18,849.56 rad.min-1)

Description

RS-series high performance DC servo motors provide excellent low-speed function and very long service life. With low-speed torques up to 13Nm and speeds to 3000 min-1, they have options of tacho, encoder or resolver feedback, plus brake and 2nd shaft Using high energy magnets, RS-series DC motors combined with RTS drives are particularly suitable for applications which require a very compact solution or a high dynamic level. Applications: • Factory Automation • Life Science Diagnostic • Textile Machines • Radiation Hardend Technical Overview: • Motor Technology : brushed DC servo motor With rare earth magnets • Frame Sizes : 39mm 1 52mm 168mm 1 83mm 197mm 1 120mm • Torque Range : 0.05 ... 13 Nm • speed Range : 2000 ... 3000 min-l • Voltage Supply : 20.7 ... 105VDC • Number of Poles : 4 • Protection Level : IP40 (RSI-RS4) I IP54 (RS5-RS6) • Feedback Sensors : Tacho I Encoder I Resolver • Marking : CE (except RS6) Features: • Shaft - RSI to RS4: Smooth full Shaft - RS5 and RS6: Full keyed Shaft • 2nd Shaft End - RSI to RS3: possibility to mount standard tacho or encoder - RS5 and RS6: possibility to mount standard tacho, adaptation for encoder mounting in option • Output Cables - 1 m without connector • Options - brake (RS2 to RS6) / - tachometer - adaptation 2nd Shaft end for encoder mounting (RS5 and RS6)
